Choosing the right approach and tools
Martin Boonstra - SAP MDG Stream Lead
Migrating and managing master data is a critical step in any SAP S/4HANA implementation. Clean, consistent, and complete master data ensure smooth business processes across all lines of business within an organization. SAP offers several native tools for data migration and governance, complemented by third-party ETL solutions.
Choosing the right approach depends on factors such as system architecture, data complexity, project scope, and the maturity of data governance.
This blog highlights the main SAP and third-party tools for efficient data migration towards an S/4 HANA on-premise or Private Cloud edition system.
1. SAP S/4HANA Migration Cockpit

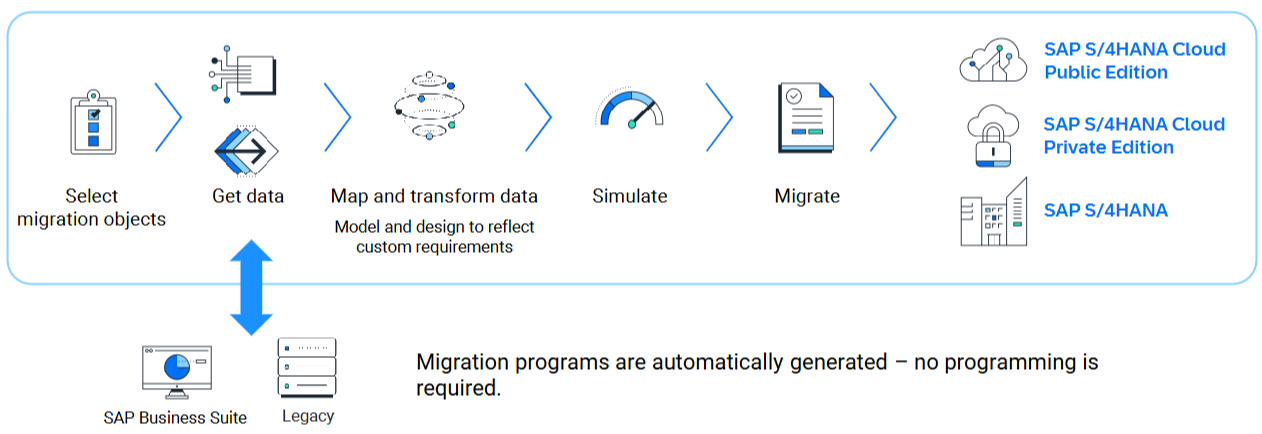

The Migration Cockpit is SAP’s recommended tool for initial master data migration into S/4HANA. It supports both file-based uploads and direct transfers from legacy SAP systems. Note: Since S/4HANA 2020, the Legacy Transfer Migration Cockpit has been replaced by the SAP S/4HANA Migration Cockpit.
Key strengths:
Delivered with preconfigured migration objects for common master data (e.g., business partners, materials, cost centers).
Guided process that reduces the need for custom development.
Direct Transfer option simplifies migration from SAP ERP (ECC) to S/4HANA.
Considerations:
Primarily designed for one-time or initial loads, not continuous data synchronization.
Custom or industry-specific master data objects may require enhancement of standard migration objects.
Transaction codes:
LTMC - Access Migration Cockpit (in SAP S/4HANA releases prior to 2020).
LTMOM - Migration Object Modeler (used to extend or adapt objects).
From S/4HANA 2021 onward, the Cockpit is accessible as a Fiori app.

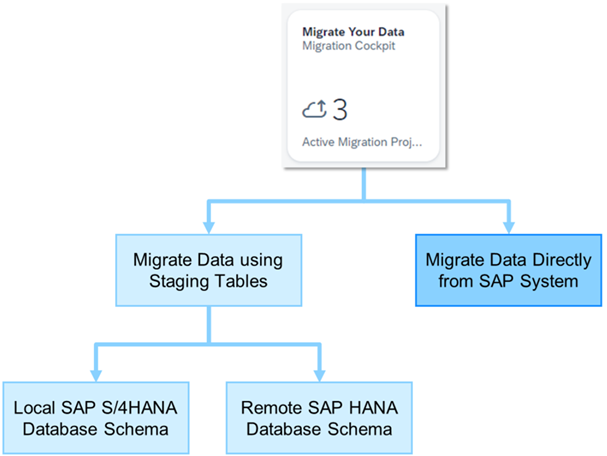

Loading options:
File-based transfer: Upload CSV/XML templates generated per migration object.
Direct transfer: Directly migrate from ECC systems via RFC connection.
Staging tables (from S/4HANA 2020): Migration objects load into staging tables, allowing custom ETL tools to populate these before cockpit execution.
Best practices:
Reuse extensibility for custom fields and extend migration objects via LTMOM for Z-fields.
Validate data in staging tables using SQL before load execution.
2. Web Services / IDoc-based loading

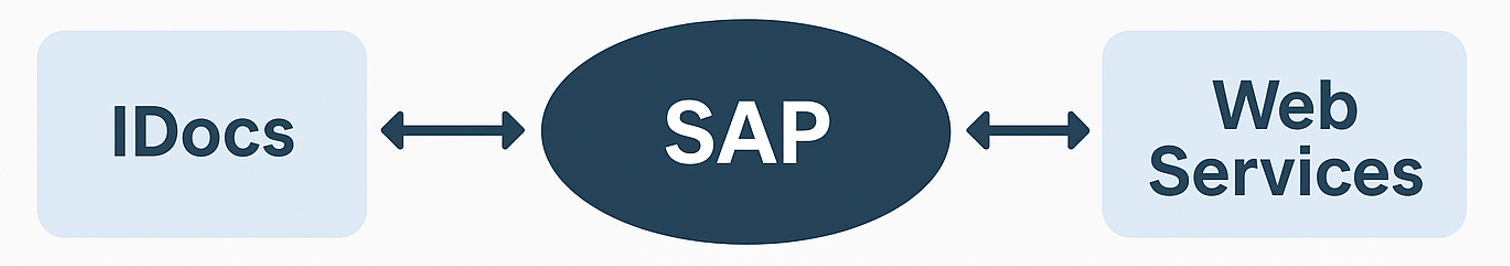

IDocs (Intermediate Documents) have long been a cornerstone of SAP data integration, providing a structured, standardized way to exchange data between SAP and non-SAP systems. Alongside IDoc interfacing, SOAP-based Web Services can be used through the embedded Data Replication Framework, which supports monitoring, filtering and key/value mapping.
Key strengths:
Widely supported, mature, and reliable integration mechanism.
Ideal for incremental data loads and continuous integration scenarios.
Standard IDoc types and Web Service interfaces exist for many master data types (business partner, customer, vendor, material, etc.).
Leverages DRF functionalities such as filtering, mapping and monitoring.
Considerations:
Requires configuration of ALE/IDoc/Web Service interfaces.
Technical monitoring and error handling may be needed.
o Less efficient for large initial loads due to processing overhead.
When to use:
For ongoing replication (e.g., from/to legacy systems).
When master data is already structured in XML/IDoc-compatible formats.
3. SAP Data Services (ETL Tool)

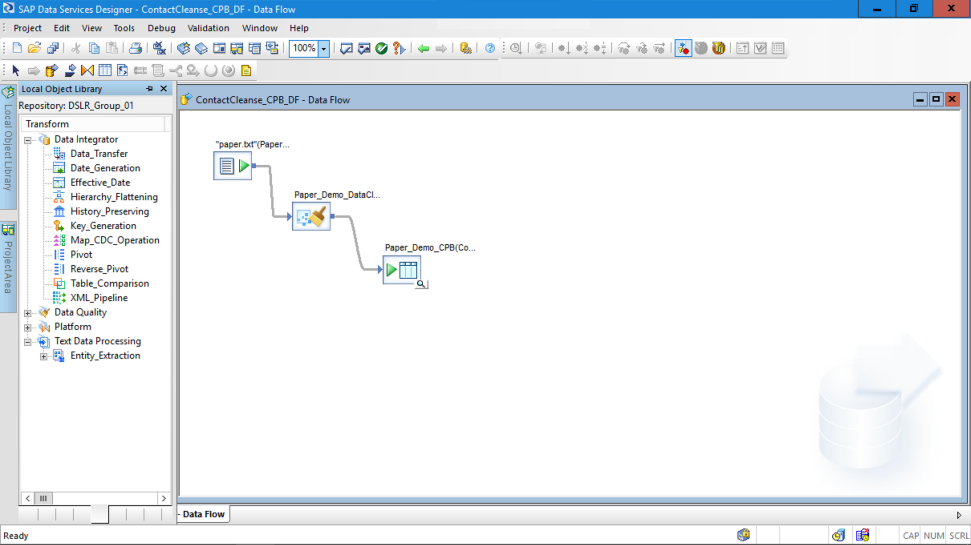

SAP Data Services (formally known as Business Objects Data Services - BODS) is a valuable ETL tool that can extract, transform, and load large volumes of master data into S/4HANA.
Key strengths:
Excellent for complex transformations and data cleansing.
Integrates seamlessly with both SAP and non-SAP sources.
Handles large data volumes more efficiently than IDocs or file uploads.
Considerations:
Requires specialized skillset and infrastructure.
Often combined with Migration Cockpit or MDG for full lifecycle data management.
Typical use cases:
Enterprises with large heterogeneous source landscapes.
Advanced data quality and profiling requirements.
4. MDG Consolidation and Mass Processing framework
The Consolidation and Mass Processing (CMP) framework within MDG supports merging, deduplicating, and enriching master data before loading it into the operational environment.
Key strengths:
Identifies duplicates and harmonizes data prior to migration.
Supports bulk data loads with validation rules.
Improves data quality automatically.
Provides a “single source of truth” for master data.
Integrates natively with S/4HANA.
Works seamlessly with MDG Central Governance to maintain data quality; no additional licenses are required when MDG is used as governance tooling.
Considerations:
Adds time to the migration process but pays off in higher data quality.
Requires MDG setup, configuration and licenses.
Best suited for organizations with continuous governance needs, rather than one-time migration.
Restricted to a limited set of Master Data objects.
When to use:
In pre-migration harmonization projects (merging multiple ERPs).
To ensure data quality during ongoing master data governance.
Note: As a variant on the MDG CMP Framework, the Central Governance functionality in MDG also supports initial data loading. However, this functionality is limited and, in the context of MDG on S/4HANA, largely superseded by the CMP framework when MDG is used as an application.
5. Third-party ETL and Data Quality Tools
Beyond SAP’s ecosystem, many organizations use third-party ETL and data quality tools such as Informatica, Talend, IBM InfoSphere, Winshuttle, Precisely, Syniti and Qlik Replicate.
Key strengths:
Flexible and scalable for enterprise-wide migrations.
Can integrate with hybrid IT landscapes and cloud environments.
Advanced data quality, profiling, and governance features often surpass SAP-native tooling.
Considerations:
Additional licensing and integration costs.
Requires mapping to SAP interfaces (APIs, BAPIs, or IDocs) for final loading.
6. Other classic approaches
While less relevant for greenfield projects, older tools may still be used:
LSMW (Legacy System Migration Workbench):
Technically still works in S/4HANA (on-premise) but not recommended.
Replaced by the Migration Cockpit.
Proven technology for quick and straightforward data loads/actions.
Direct database loads:
Strongly discouraged due to bypassing business logic and validations.
Only viable in controlled staging scenarios.
Comparison overview

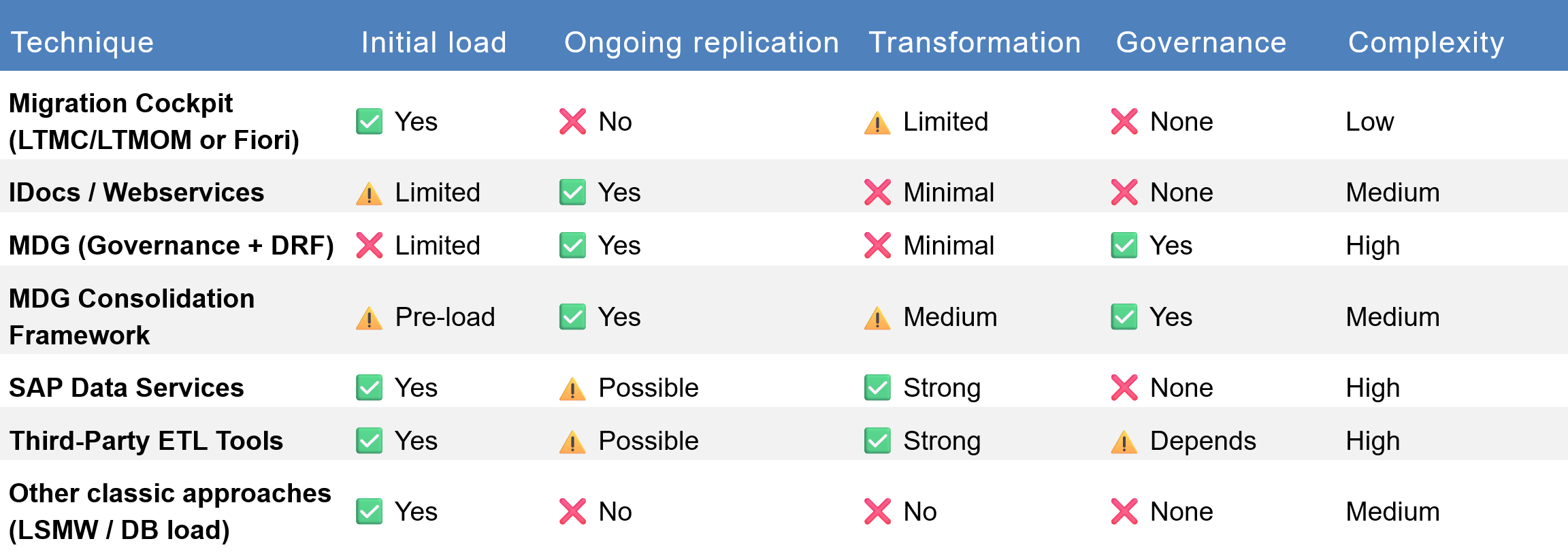

Each tool offers unique strengths, and the ideal combination mix depends on the organization’s system landscape, governance objectives, and data complexity. The table below provides a clear overview.
Summary: how best to choose the right approach
Master data migration in SAP S/4HANA is not a one-size-fits-all process. Many organizations adopt a hybrid approach, combining multiple tools at different stages of their master data journey. A typical roadmap might start with the Migration Cockpit, use Data Services for cleansing, and then implement MDG for ongoing governance and quality control.
Key takeaways:
Migration Cockpit: best for initial data migrations.
IDocs, Web Services and APIs: ideal for data integration and replication.
ETL tools: recommended for complex transformations and large volumes.
MDG + Consolidation: ensures data quality and data harmonization before migration.
